机柜恒温制冷空调，高温严苛环境稳定控温防护设备

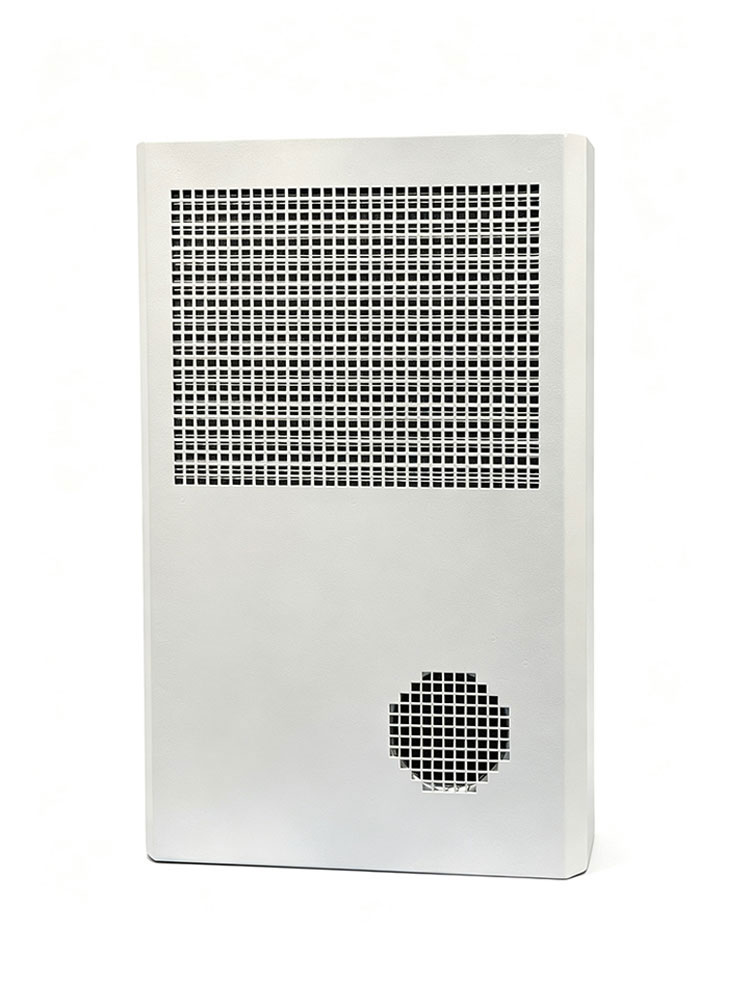

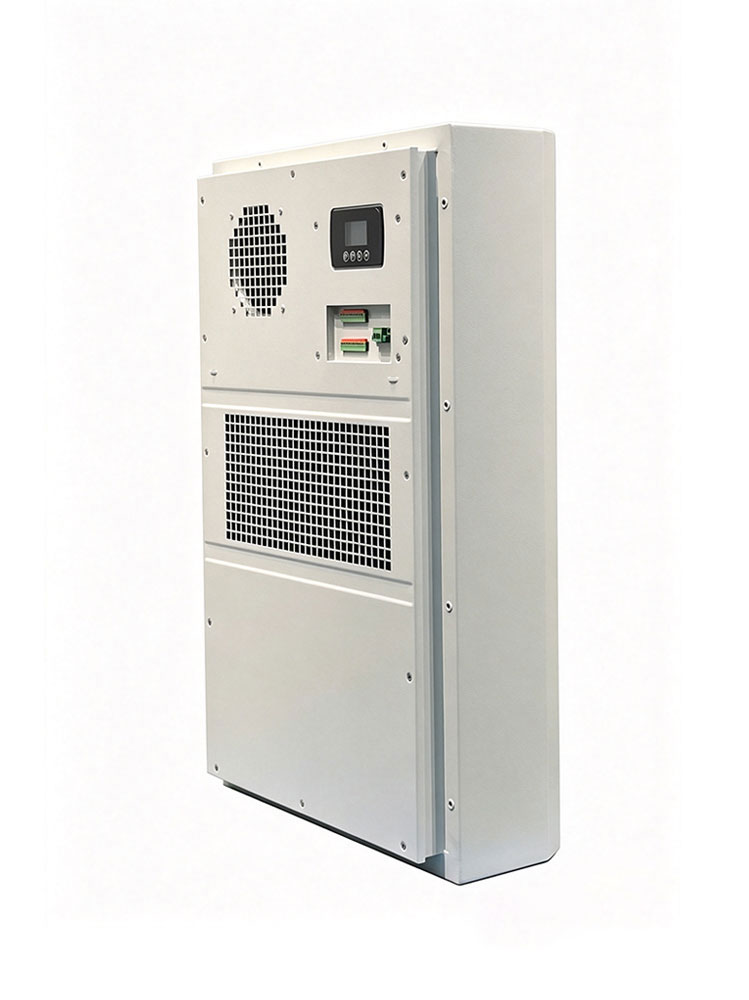

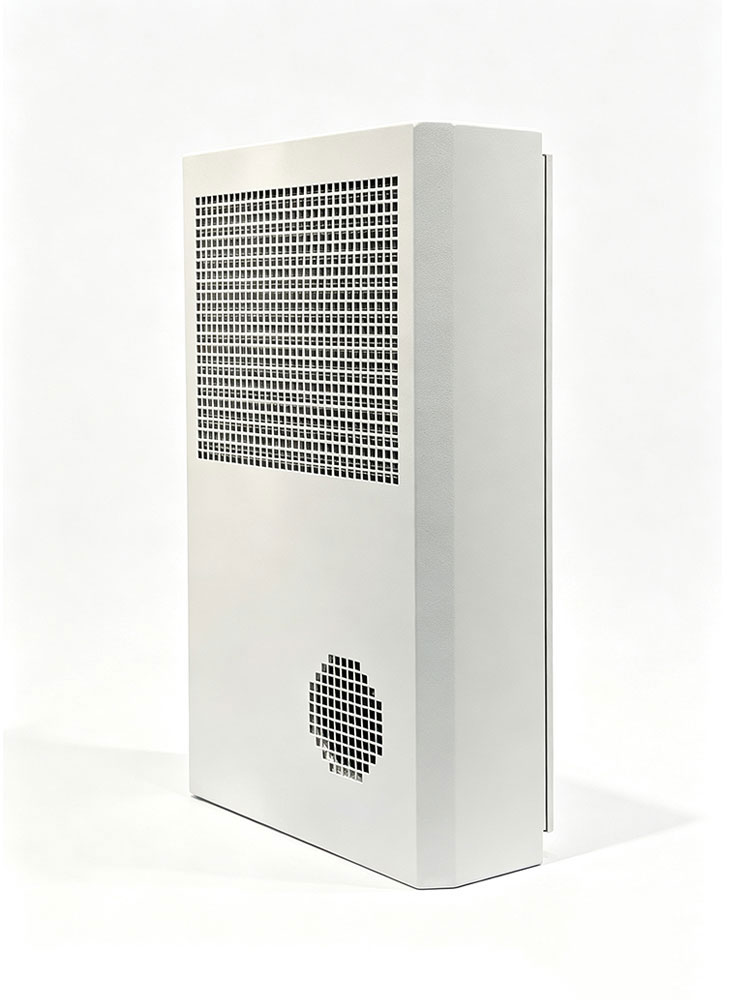

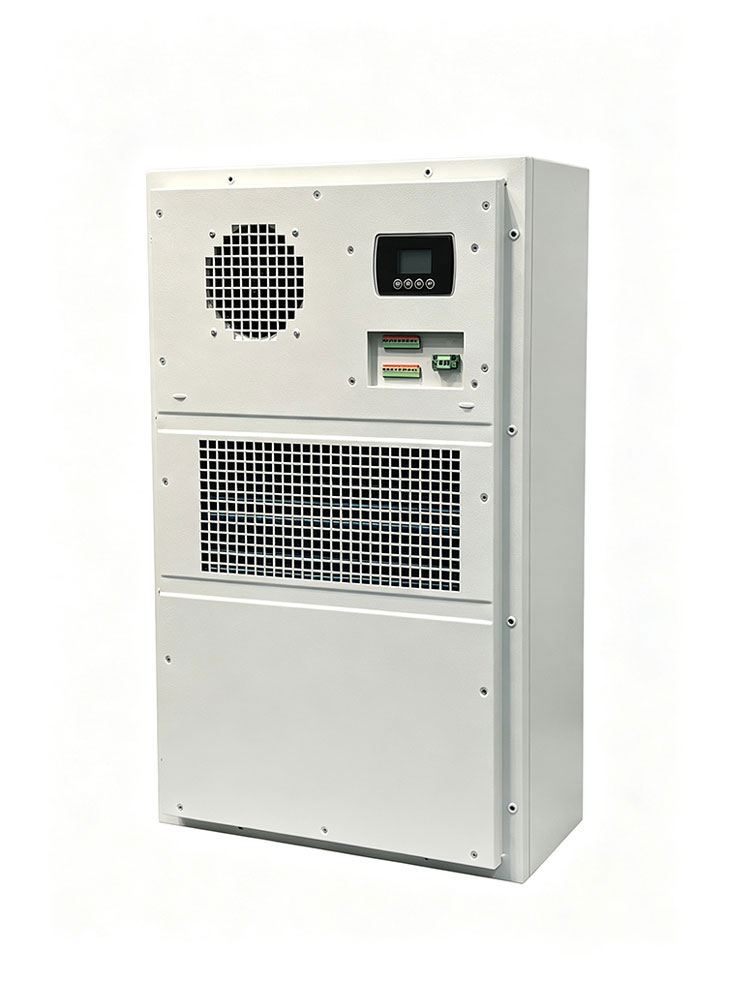

The air conditioner is one kind of refrigeration product self-developed for cabin. It is applicable in the place where the cabin internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.
The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabin can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
The air conditioner is one kind of refrigeration product self-developed for cabin. It is applicable in the place where the cabin internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.
The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabin can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
Technical Specifications
Item | Name | Unit | Parameter |
Dimension and installation | Body outline dimension (height*width* depth ) | mm | 750*450*200 |
Outline dimension including flange(height*width* depth ) | mm | 784*484*200 | |
Weight | Kg | 24 | |
Installation method | Embedding slightly | ||
Installation method | Outdoor | ||
Environment and protection | Working environment temperature | ℃ | -40 to +55 |
Noise | dB(A) | 65 | |
Life expectancy | Years | >10 | |
IP grade | IP55 | ||
Refrigerant | R134a | ||
ROHS certification | yes | ||
Performance | Input voltage range | 220±15%VAC~50Hz | |
Refrigerating capacity(L35/L35) | W | 1500 | |
Rated Refrigerating input power(L35/L35) | W | 580 | |
Rated Refrigerating current (L35/L35) | A | 2.6 | |
Maximum Refrigerating current | A | 4.6 | |
Heat capacity (optional) | W | 1000 | |
Air Volume of Inner Circulation | m3/h | 370 | |
