The complete machine is standard equipped with an active cooling system of cabinet air conditioner, and heating modules can be selected as needed to adapt to high and low temperature environmental conditions in different regions. Precise constant temperature control can effectively avoid equipment loss caused by temperature fluctuation and significantly extend the service life of core components such as batteries and high-voltage boxes inside the cabinet.
An optional built-in aerosol fire extinguishing device can be installed in the cabinet, which can quickly respond to and put out internal fires, fundamentally avoid the risk of equipment spontaneous combustion, and fully guarantee the operation safety of the whole energy storage system.
Technical Specifications
系统配置

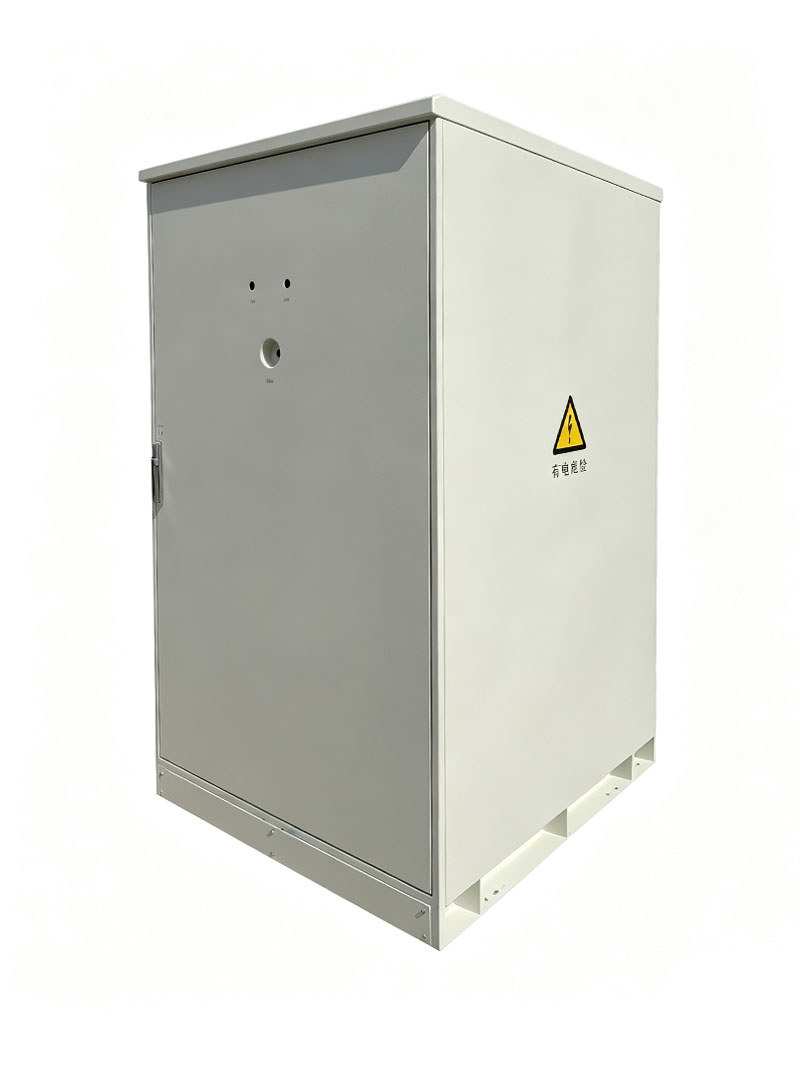

| Product name | 261KWh energy storage cabinet (external side mounted inverter) |
Model | YY-200611741250 | |
Dimension（HxWxD） | 2006×1174×1250mm | |
Material | Galvanized sheet | |
Insulation thickness | 20mm thick PEF insulation cotton | |

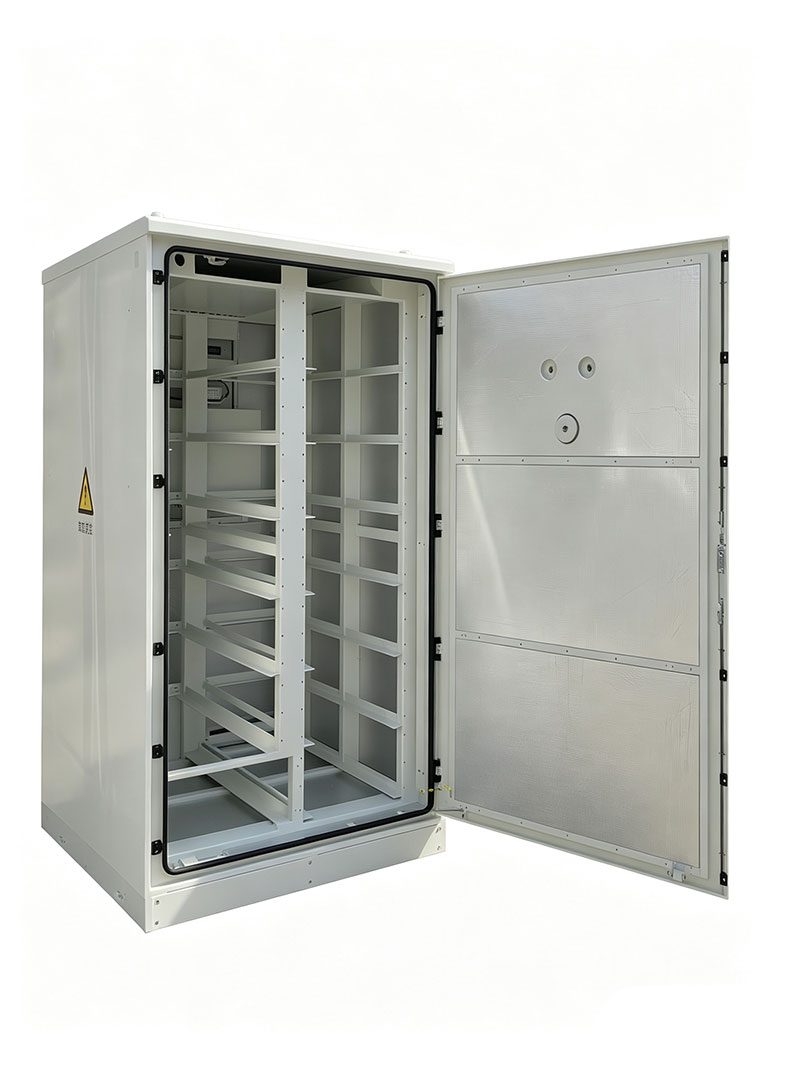

Maintenance method | Front and back opening doors | |
Assembling method | Floor | |

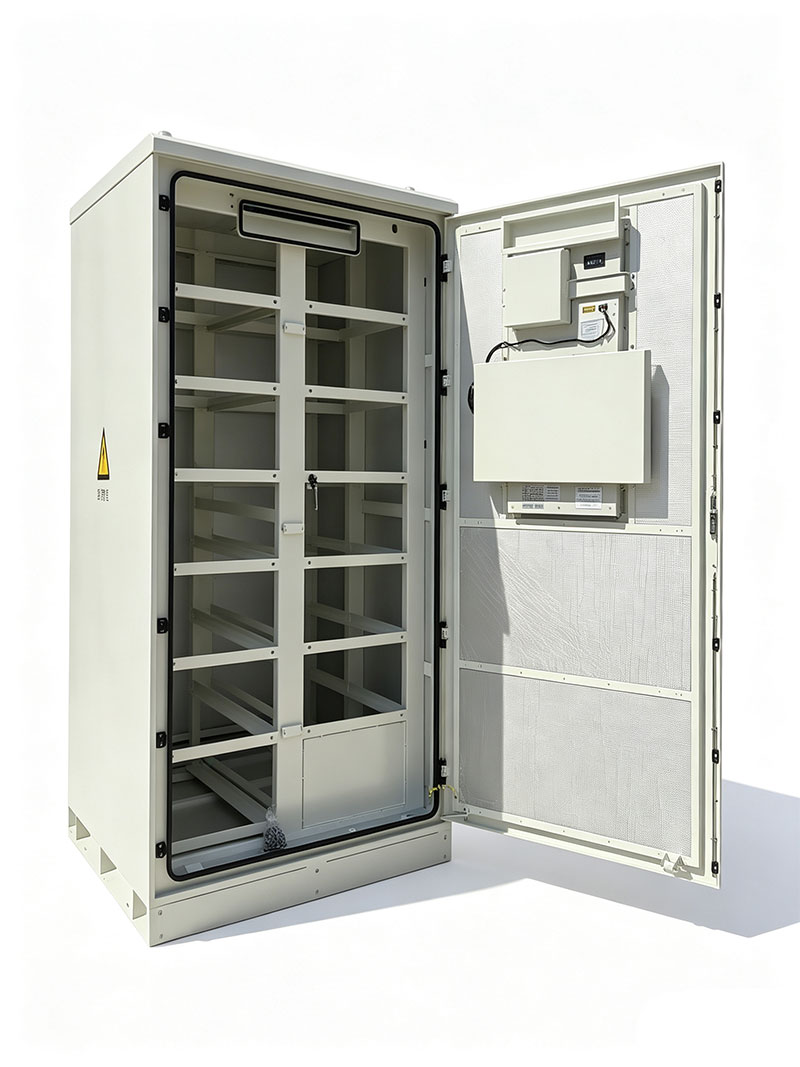

Rack size | 19 inch rack+14 pairs of L-shaped support bars, meeting the installation space for 13 sets of 64V 314Ah batteries and high-voltage box | |
Protection level | IP55 | |
Working temperature | -40℃～+55℃ | |
Cool system | Air conditioner, cooling capacity: 3000W， AC220V/50Hz， Optional heating function | |
Fire fighting | 1个热气溶胶灭火装置（选配） |
