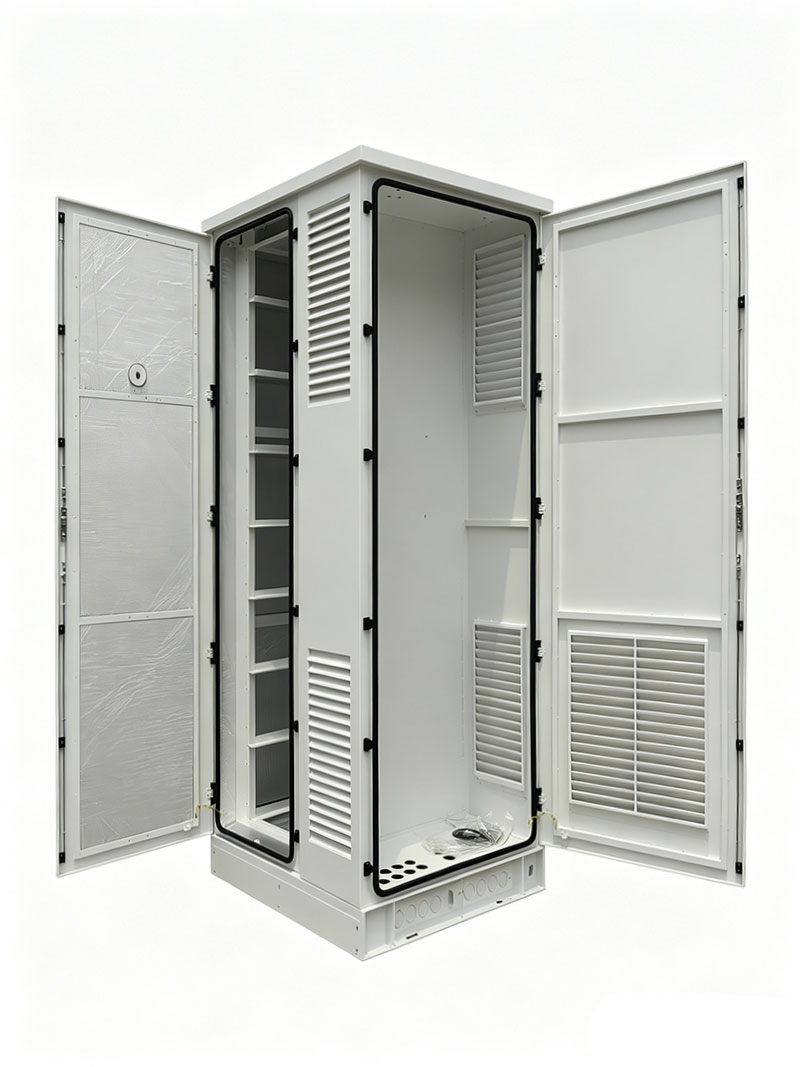

YuYue outdoor energy storage cabinet adopts sheet metal frame as the main structure, with 20mm thick PEF thermal insulation cotton pasted on the inner wall for integrated forming. It has excellent rainproof, dust-proof and corrosion-resistant properties, and can stably adapt to various complex outdoor working conditions for a long time. Since the sizes of supporting batteries, high-voltage box and specifications of inverters vary from customer to customer, this product supports personalized customized production. The cabinet side is designed with an independent inverter compartment equipped with louver heat dissipation structure. It ensures sufficient heat dissipation for the inverter, while effectively improving operational safety and service life of the equipment.

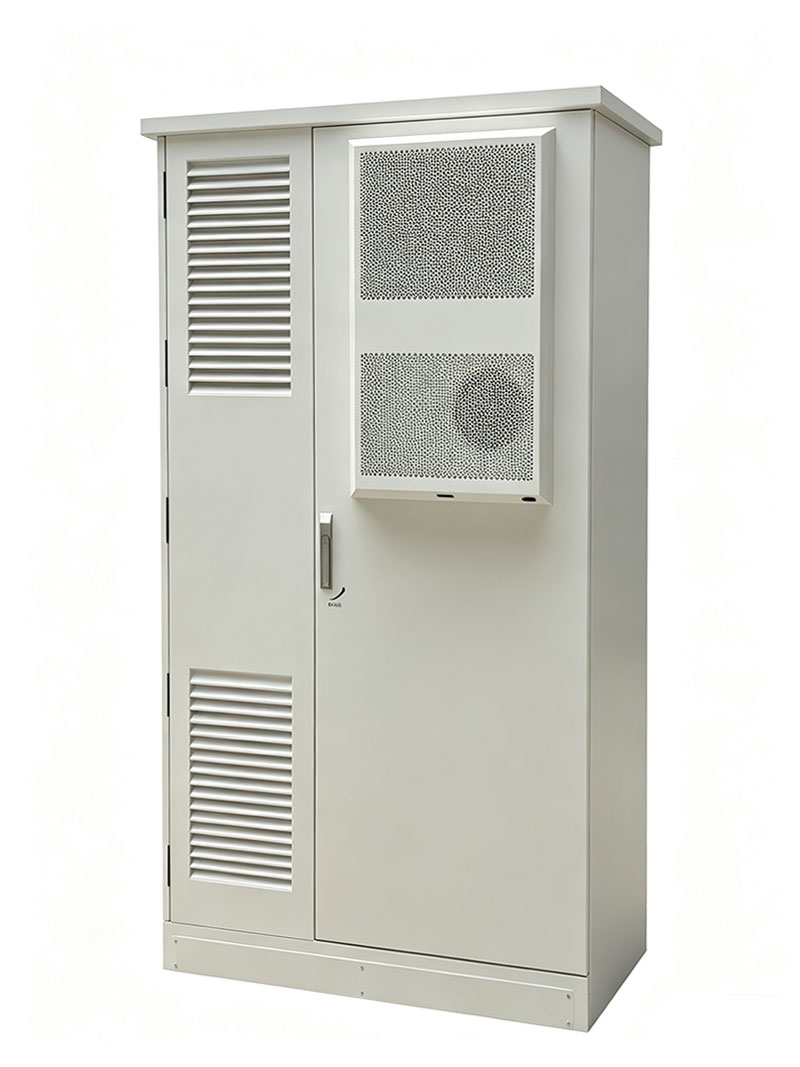

The complete machine is standard equipped with an active cooling system of cabinet air conditioner, and heating modules can be selected as needed to adapt to high and low temperature environmental conditions in different regions. Precise constant temperature control can effectively avoid equipment loss caused by temperature fluctuation and significantly extend the service life of core components such as batteries and high-voltage boxes inside the cabinet.
An optional built-in aerosol fire extinguishing device can be installed in the cabinet, which can quickly respond to and put out internal fires, fundamentally avoid the risk of equipment spontaneous combustion, and fully guarantee the operation safety of the whole energy storage system.
Technical Specifications
系统配置
| Product name | 112KWh energy storage cabinet |
Model | YY-223512101200 | |
Dimension（HxWxD） | 2235×1210×1200mm | |
Material | Galvanized sheet | |
Insulation thickness | 20mm thick PEF insulation cotton | |

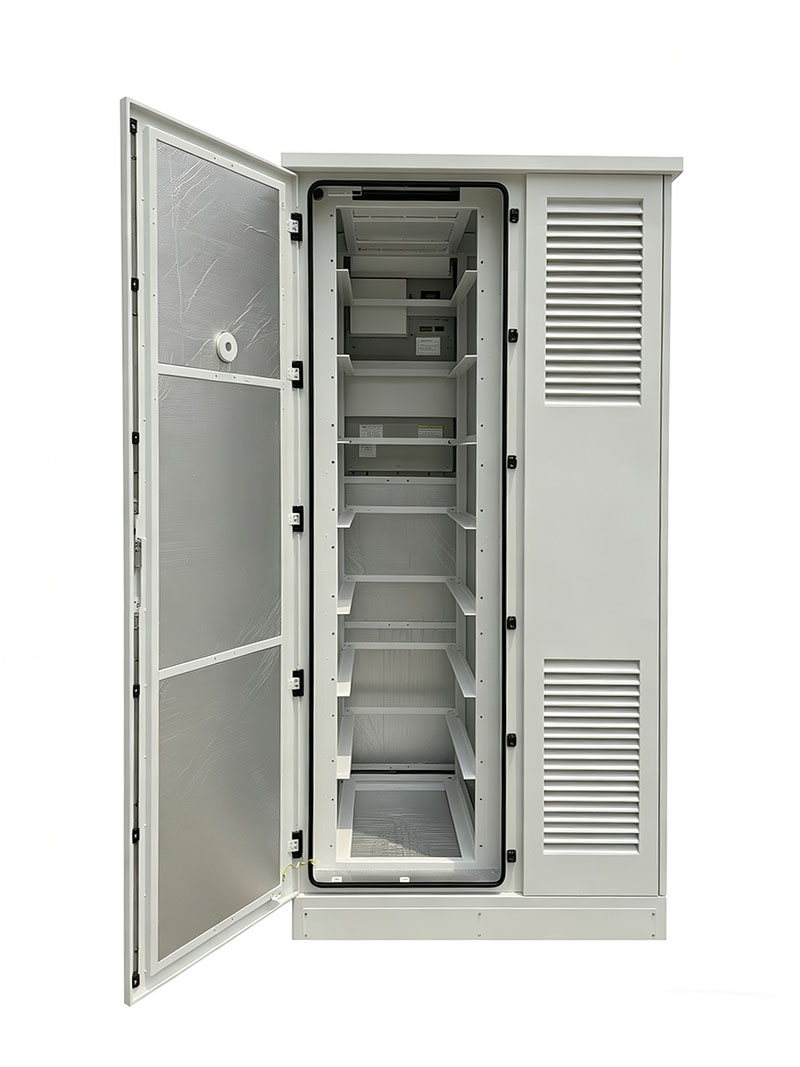

Maintenance method | The battery compartment has front and rear access doors, while the inverter compartment features side opening doors. | |
Assembling method | Floor | |
Rack size | 19 inch rack+8 pairs of L-shaped support bars, meeting the installation space for 7 sets of 51.2V 314Ah batteries and high-voltage box and inverter | |
Protection level | IP55 | |
Working temperature | -40℃～+55℃ | |
Cool system | Air conditioner, cooling capacity: 2000W， AC220V/50Hz， Optional heating function | |
Fire fighting | 1 hot aerosol fire extinguishing device (optional) |
